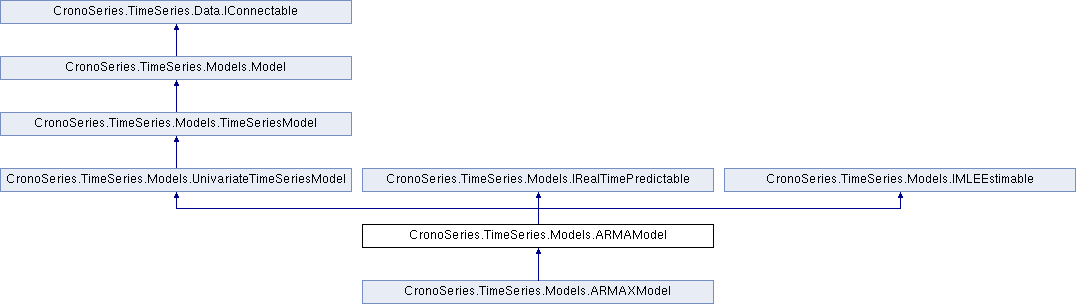

Inheritance diagram for CronoSeries.TimeSeries.Models.ARMAModel:

Public Member Functions
	ARMAModel (int arOrder, int maOrder)

	ARMAModel (int arOrder, int maOrder, Data.TimeSeries data)
	Basic constructor for an ARMA(p,q) model with Gaussian innovations More...

	ARMAModel (int arOrder, int maOrder, Data.TimeSeries data, int tailDOF)
	basic constructor for an ARMA(p,q) model with Students T innovations More...

void	CarryOutPreMLEComputations ()

virtual MathNet.Numerics.LinearAlgebra.Vector< double >	ParameterToCube (MathNet.Numerics.LinearAlgebra.Vector< double > param)

virtual MathNet.Numerics.LinearAlgebra.Vector< double >	CubeToParameter (MathNet.Numerics.LinearAlgebra.Vector< double > cube)

virtual void	ResetRealTimePrediction ()

virtual void	Register (Data.TimeSeries series)

virtual double	Register (DateTime timeStamp, double value, double[] auxValues)

virtual double	Register (DateTime timeStamp, double value)

virtual DistributionSummary	GetCurrentPredictor (DateTime futureTime)

override int	NumOutputs ()

override object	GetOutput (int socket)

override string	GetOutputName (int index)

override string	GetParameterName (int index)

override string	GetParameterDescription (int index)

override string	GetShortDescription ()

void	SetARPolynomial (MathNet.Numerics.LinearAlgebra.Vector< double > p)

void	SetMAPolynomial (MathNet.Numerics.LinearAlgebra.Vector< double > p)

MathNet.Numerics.LinearAlgebra.Vector< double >	GetMAPolynomial ()

override double	LogLikelihood (MathNet.Numerics.LinearAlgebra.Vector< double > parameter, double penaltyFactor, bool fillOutputs)

override Data.TimeSeries	SimulateData (List< DateTime > inputs, int randomSeed)
	This function must simulate from the current model. More...

override object	BuildForecasts (object otherData, object inputs)
	This function generates forecasts (or fitted values) for the specified inputs, based on the existing data object and current model parameters. Results are returned in a form that depends on the model, for example, as a TimeSeries of DistributionSummary objects More...

double	ARCoeff (int i)
	returns the i'th autoregressive coefficient: 0 = Phi_1, 1 = Phi_2, etc. More...

double	MACoeff (int i)

override MathNet.Numerics.LinearAlgebra.Vector< double >	ComputeACF (int maxLag, bool normalize)

void	EstimateByYuleWalker (double sampleMean, MathNet.Numerics.LinearAlgebra.Vector< double > acvf)
	This method fits the model by using Yule-Walker estimation. It can only handle a few particular orders for the ARMA model now. In other cases it throws an exception. More...

Public Member Functions inherited from CronoSeries.TimeSeries.Models.UnivariateTimeSeriesModel
override List< Type >	GetAllowedInputTypesFor (int socket)

override List< Type >	GetOutputTypesFor (int socket)

Public Member Functions inherited from CronoSeries.TimeSeries.Models.TimeSeriesModel
override int	NumInputs ()

override string	GetInputName (int socket)

override bool	InputIsFree (int socket)

override bool	SetInput (int socket, object item, StringBuilder failMsg)

override int	NumOutputs ()

override object	GetOutput (int socket)

override string	GetOutputName (int socket)

Public Member Functions inherited from CronoSeries.TimeSeries.Models.Model
string	GetDescription ()

bool	CanUseMLE ()

bool	CanUseMoM ()

bool	CanHandleNaNs ()

abstract double	LogLikelihood (Vector< double > parameter, double penaltyFactor, bool fillOutputs)
	Returns the (possibly penalized) log-likelihood of the model with specified parameters and the current object theData. If parameter==null, it will use CURRENT parameters. If fillOutputs is true, then the residuals and any other outputs will be filled in. More...

virtual void	FitByMLE (int numIterationsLDS, int numIterationsOpt, double consistencyPenalty, Optimizer.OptimizationCallback optCallback)

virtual void	FitByMoM ()
	Fits model by method of moments. This is the default method used of CanUseMLE is false. More...

bool	InputToOutputIsValid ()

bool	SetParameters (Vector< double > v)

Public Member Functions inherited from CronoSeries.TimeSeries.Models.IRealTimePredictable
void	Register (Data.TimeSeries series)

Public Member Functions inherited from CronoSeries.TimeSeries.Models.IMLEEstimable
Vector< double >	ParameterToCube (Vector< double > param)

Vector< double >	CubeToParameter (Vector< double > cube)

Public Attributes
bool	IsShortMemory => Math.Abs(FracDiff) < 1e-10

Public Attributes inherited from CronoSeries.TimeSeries.Models.Model
object	theData

Protected Member Functions
	ARMAModel (int arOrder, int maOrder, int tailDOF)

override bool	CheckParameterValidity (MathNet.Numerics.LinearAlgebra.Vector< double > param)

MathNet.Numerics.LinearAlgebra.Vector< double >	GetLikelihoodsFromResiduals (double[] res, double[] pvars)

override MathNet.Numerics.LinearAlgebra.Vector< double >	ComputeConsequentialParameters (MathNet.Numerics.LinearAlgebra.Vector< double > parameter)

void	LocalInitializeParameters ()

override void	InitializeParameters ()
	This function is called after OnDataConnection. It can assume valid data is available, and it must fill in valid default parameter values. It typically also sets default parameter states, for purposes of estimation. More...

double[]	ComputeSpecialResiduals (Data.TimeSeries startData, out double[] rs, int forecastHorizon, out double[] forecasts)
	This function uses the approach described in Section 8.7 of B&D if fracdiff parm==0 to get one-step predictors and residuals. More...

Protected Member Functions inherited from CronoSeries.TimeSeries.Models.UnivariateTimeSeriesModel
bool	DataIsLongitudinal ()

override bool	CheckDataValidity (object data, StringBuilder failMessage)
	This function checks to see if the object can be cast into the appropriate form for the model. More...

override void	OnDataConnection ()
	This function is called immediately after a data object is connected to the model. Any initial processing (e.g. determining dimension of parameter vector, etc.) should be done here. More...

Protected Member Functions inherited from CronoSeries.TimeSeries.Models.Model
abstract Vector< double >	ComputeConsequentialParameters (Vector< double > parameter)
	This function must fill in values of consequential parameters. These parameters are determined by the current ParameterState[] settings in ParameterStates. These can depend on the non-consequential parameters and the data set. The function should throw an exception if it is not possible. The parameter vector with parameters filled in should be returned. More...

double	NegativeLogLikelihood (Vector< double > partialCube)
	This function is a wrapper for another function, to be passed to a minimizer. More...

abstract bool	CheckParameterValidity (Vector< double > param)
	Checks for validity of parameters. More...

Static Protected Member Functions
static double	GammaFunction (double x)

static Complex	ComplexPower (Complex c, double pow)

Static Protected Member Functions inherited from CronoSeries.TimeSeries.Models.Model
static Vector< double >	CubeFix (Vector< double > cube)
	This function makes sure that its vector argument really does contain an element of the unit hypercube. If not, it is mapped back to an element on the hypercube (the mapping is continuous). More...

Protected Attributes
MathNet.Numerics.LinearAlgebra.Vector< double >	autocovariance

Data.TimeSeries	oneStepPredictors

Data.TimeSeries	oneStepPredictorsAtAvailability

Data.TimeSeries	oneStepPredStd

Data.TimeSeries	unstandardizedResiduals

Protected Attributes inherited from CronoSeries.TimeSeries.Models.UnivariateTimeSeriesModel
Longitudinal	longitudinalValues

Data.TimeSeries	values

Properties
override string??	Description `[get]`

double	FracDiff `[get, set]`

double	Mu `[get, set]`

double	Sigma `[get, set]`

int	AROrder `[get]`

int	MAOrder `[get]`

int	TailDegreesOfFreedom `[get]`

Properties inherited from CronoSeries.TimeSeries.Models.TimeSeriesModel
override Vector< double >	Parameters `[get, set]`

Properties inherited from CronoSeries.TimeSeries.Models.Model
abstract string	Description `[get]`
	Should return a description of the model, including current parameter values if desired. More...

object	Residuals `[get, protected set]`

object	TheData `[get, set]`

double	GoodnessOfFit `[get, protected set]`

abstract Vector< double >	Parameters `[get, set]`

ParameterState[]	ParameterStates `[get, set]`

string	ToolTipText `[get, set]`

Properties inherited from CronoSeries.TimeSeries.Data.IConnectable
string	ToolTipText `[get, set]`

Additional Inherited Members
Public Types inherited from CronoSeries.TimeSeries.Models.Model
enum	ParameterState { Free, Locked, Consequential }

Constructor & Destructor Documentation

◆ ARMAModel() [1/4]

CronoSeries.TimeSeries.Models.ARMAModel.ARMAModel	(	int	arOrder,
		int	maOrder
	)

inline

To depreciate, use other constructor with data when building a new model

Basic constructor for an ARMA(p,q) model with Gaussian innovations

Parameters

arOrder	autoregressive order
maOrder	moving average order

◆ ARMAModel() [2/4]

CronoSeries.TimeSeries.Models.ARMAModel.ARMAModel	(	int	arOrder,
		int	maOrder,
		Data.TimeSeries	data
	)

inline

Basic constructor for an ARMA(p,q) model with Gaussian innovations

Parameters

arOrder	autoregressive order
maOrder	moving average order
data	data to associate with this model

◆ ARMAModel() [3/4]

CronoSeries.TimeSeries.Models.ARMAModel.ARMAModel	(	int	arOrder,
		int	maOrder,
		Data.TimeSeries	data,
		int	tailDOF
	)

inline

basic constructor for an ARMA(p,q) model with Students T innovations

Parameters

arOrder	autoregressive order
maOrder	moving average order
data	data to associate with this model
tailDOF	degrees of freedom of T-distribution for innovations

◆ ARMAModel() [4/4]

CronoSeries.TimeSeries.Models.ARMAModel.ARMAModel	(	int	arOrder,
		int	maOrder,
		int	tailDOF
	)

inlineprotected

To depreciate, use other constructor with data when building a new model

constructor for an ARMA(p,q) model with Students T innovations

Parameters

arOrder	autoregressive order
maOrder	moving average order
tailDOF	degrees of freedom of T-distribution for innovations

Member Function Documentation

◆ ARCoeff()

double CronoSeries.TimeSeries.Models.ARMAModel.ARCoeff ( int i )

inline

returns the i'th autoregressive coefficient: 0 = Phi_1, 1 = Phi_2, etc.

Parameters

i

Returns

◆ BuildForecasts()

override object CronoSeries.TimeSeries.Models.ARMAModel.BuildForecasts	(	object	otherData,
		object	inputs
	)

inlinevirtual

This function generates forecasts (or fitted values) for the specified inputs, based on the existing data object and current model parameters. Results are returned in a form that depends on the model, for example, as a TimeSeries of DistributionSummary objects

Parameters

otherData
inputs	may have different interpretations, for time series, it is typically an IList of DateTime objects

Returns: a model-dependent object: for example, a time series of distribution summaries

Implements CronoSeries.TimeSeries.Models.Model.

◆ ComputeSpecialResiduals()

double [] CronoSeries.TimeSeries.Models.ARMAModel.ComputeSpecialResiduals	(	Data.TimeSeries	startData,
		out double[]	rs,
		int	forecastHorizon,
		out double[]	forecasts
	)

inlineprotected

This function uses the approach described in Section 8.7 of B&D if fracdiff parm==0 to get one-step predictors and residuals.

Parameters

rs	double[] array of (one-step predictive MSEs / sigma^2), Returns double[] array of residuals = [ (x_i - \hat{x}_i)/\sqrt{rs_i} ]

◆ EstimateByYuleWalker()

void CronoSeries.TimeSeries.Models.ARMAModel.EstimateByYuleWalker	(	double	sampleMean,
		MathNet.Numerics.LinearAlgebra.Vector< double >	acvf
	)

inline

This method fits the model by using Yule-Walker estimation. It can only handle a few particular orders for the ARMA model now. In other cases it throws an exception.

Parameters

acvf

◆ InitializeParameters()

override void CronoSeries.TimeSeries.Models.ARMAModel.InitializeParameters ( )

inlineprotectedvirtual

This function is called after OnDataConnection. It can assume valid data is available, and it must fill in valid default parameter values. It typically also sets default parameter states, for purposes of estimation.

Implements CronoSeries.TimeSeries.Models.Model.

Reimplemented in CronoSeries.TimeSeries.Models.ARMAXModel.

◆ SimulateData()

override Data.TimeSeries CronoSeries.TimeSeries.Models.ARMAModel.SimulateData	(	List< DateTime >	dateTimes,
		int	randomSeed
	)

inlinevirtual

This function must simulate from the current model.

Parameters

dateTimes	these may have different interpretations, but for time series, is typically an IList of DateTime objects
randomSeed	random number seed

Returns

Implements CronoSeries.TimeSeries.Models.Model.

Reimplemented in CronoSeries.TimeSeries.Models.ARMAXModel.

The documentation for this class was generated from the following file:

TimeSeries/Models/ARMAModel.cs
